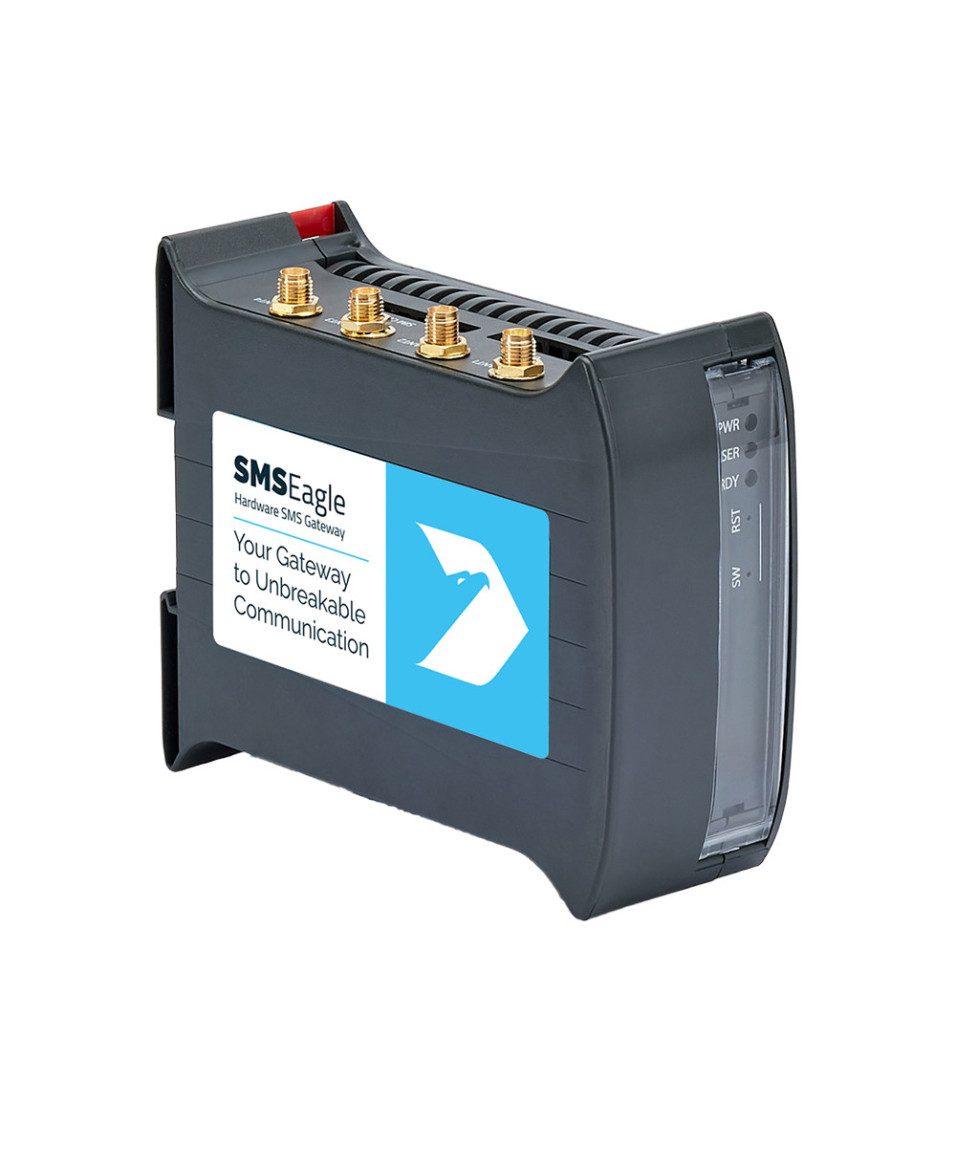

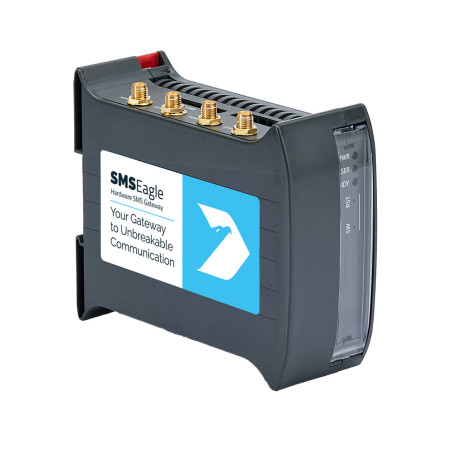

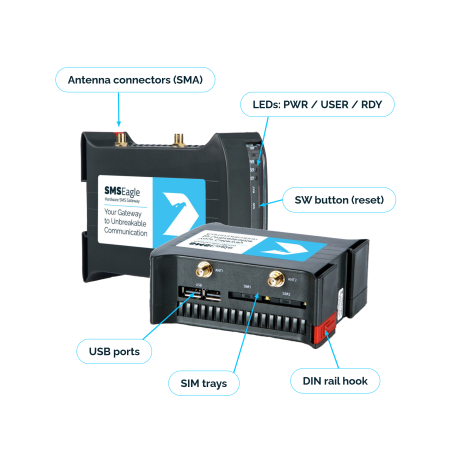

SMSEagle NXS-9700 5G

SMSEagle NXS-9700 5G

SMSEagleNXS97005GREV4
  • Modem type: 5G
  • Number of modems: 1
  • Sending/ receiving speed: 30 SMS/min
  • Device Failover: (HA-Cluster Compatibility): Yes
  • Modem Failover: No

SMSEagle NXS-9700 5G model is an ideal choice for communication in environments where the number of messages is low to moderate. The device can be connected in a device failover cluster for highest reliability and availability.

Delivery cost Delivery cost

Free shipping in the EU from €250

Delivery time Delivery time In stock
Secure payments Secure payments

Do you have any questions? Write to a specialist on the chat
$1,786.80
Tax excluded

SMSEagle is a professional hardware SMS gateway for sending and receiving SMS messages in an automated manner. The device is designed with focus on reliability and stability. It has a Linux on-board, modern responsive web-interface, database backend, and built-in 5G modem with watchdog mechanism. The device is equipped with two external MIMO antennas – important especially in poor signal reception conditions (eg. Server rooms). SMSEagle has a built-in SQL database for secure storage of messages. Built-in SNMP agent allows to constantly monitor performance of the SMSEagle. The device has a range of built-in plugins that enable additional functionalities and easy to use API for integration with external applications.

Product features:

  • Sending & Receiving SMS (managing messages with Inbox, Outbox, Sent Items)
  • Sending & Receiving MMS messages
  • Sending to single users or groups of users
  • Sending SMS at specified date and time (SMS scheduling)
  • Limit sending to specified hours (for example between 08:00-18:00)
  • Smartphone-like conversation mode (messages are nicely grouped by phone number). You can easily track history of what you send and receive to each user
  • Support of different message types (normal SMS/multipart SMS/flash SMS//MMS/binary SMS/USSD-code/WAP Push link)
  • Message templates
  • Phonebook (single users, groups)
  • Import of contacts from CSV file
  • Monitoring services (eg Web server, Mail server), SMS alerting and SNMP Traps
  • Auto-reply to incoming SMS
  • Email to SMS forwarding
  • SMS to Email forwarding
  • Subscriptions - allows newsletter-style subscriptions via SMS
  • Voice Calls (wake-up calls and text-to-speech calls) - available with VOICE add-on
  • Periodic SMS to send SMS messages at a desired time interval
  • Shift management to assign Phonebook contacts to working shifts
  • Forward incoming SMS to remote script (callback URL)
  • Blacklist feature to exclude numbers
  • Outlook Plugin to send SMS directly from the app
  • Digital input and output controlled via SMS
  • MQTT messaging protocol for IoT
  • Signal (beta) secure messaging app
  • SMPP protocol
  • Multi-Factor Authentication (MFA)
  • Message Escalation feature
  • LDAP support
  • Backup to FTP
  • Periodic folders cleanup
  • Automatic backup to FTP
  • Temperature & humidity SMS alerts
  • Multiuser support (each user has access to a private Inbox, Outbox, Sent Items)
  • Unicode support (support of national characters)
  • Multipart SMS message support
  • API for sending SMS from external applications & systems
  • Multilanguage (English, French, German, Polish, Spanish) web-interface
  • NTP client installed
  • SNMP agent installed
  • Built-in Apache2 web server
  • Built-in PostgreSQL database server
  • Built-in Postfix email server
  • Modern responsive interface
  • HTTPS support
  • Support for delivery reports
  • Watchdog mechanisms for 5G modem (automatic modem health control)
  • Failover support (HA cluster of 2 devices possible)
  • 3GPP Release 15, max data rate DL 2.1 Gbps; UL 450 Mbps
  • Support of external temperature sensors
  • Redundant power supply (via power adapter and PoE+)

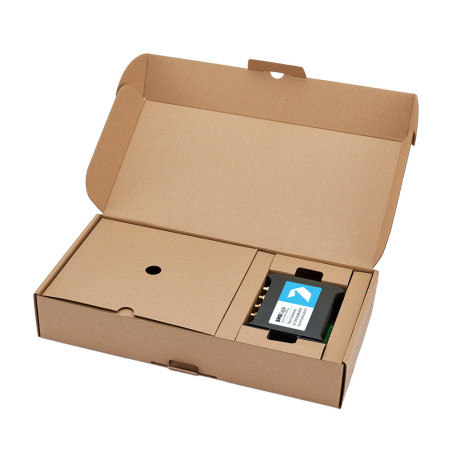

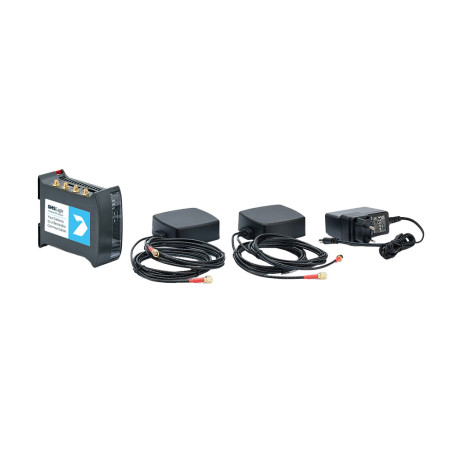

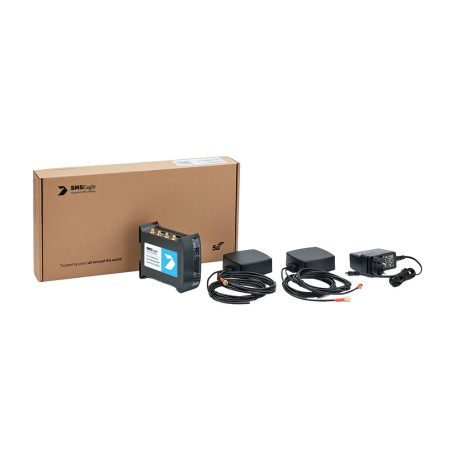

SMSEagle package includes:

  • SMSEagle hardware SMS gateway
  • 2x Omnidirectional 2.5dBi MIMO antennas with Magnetic/Adhesive mount
  • AC/DC Adapter (input voltage: 100-240V)
  • Quick-start guide
  • 24-month warranty (optional warranty extension available)
  • Access to free software upgrades within warranty period
CPU
ARM A72 1.5GHz (quad core)
Internal Storage
16GB eMMC storage
Wavebands/RF Bands
5G NR NSA/SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 4G: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 3G: UMTS B1/B2/B3/B4/B5/B6/B8/B19
Modem Type
5G
Region
Global
Num. of modems
1
Throughput (maximum)
30 SMS/min Sending/Receiving
SIM Card Standard
mini

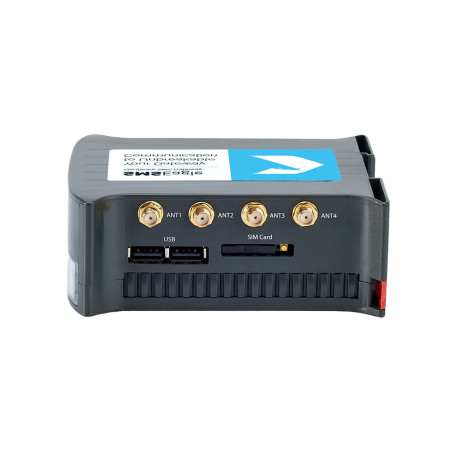

Antenna
2x Omnidirectional 2.5dBi MIMO Magnetic/Adhesive mount Cable length 2m
Antenna Connector
SMA
Network Interface
Ethernet 10/100/1000 TX

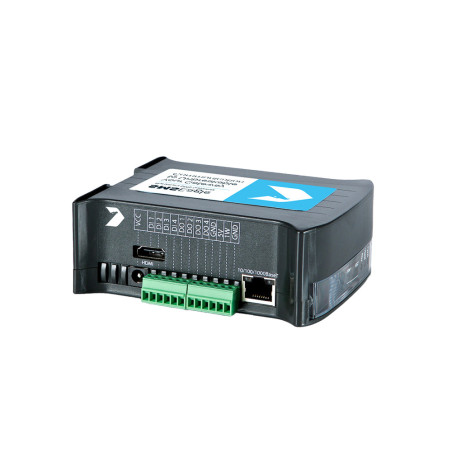

Other Interfaces
1x HDMI, 2x USB, 4xDI, 4x DO, 1x 1 Wire
Power supply
AC/DC Adapter: Voltage ranges: 100–240 V AC, Frequency: 50–60Hz, Alternative: PoE+
Casing
ABS, DIN rail installation (rack mount possible via DIN-rack adapter)
Dimensions
(width x depth x height) 35 x 120 x 101 mm
Linux Kernel
6.1x
Device Failover: (HA-cluster compatibility)
Yes
Modem Failover
No
Multi-Modem Strategy
No
Modem Fallback
5G / 4G / 3G
Certifications
CE, FCC, IC, UKCA, TDRA, GCF (for RF-module), PTCRB (for RF-module), RCM (for RF-module)
HS Code
85176200

NXS-9700-5G Datasheet

Download (141.12KB)

NXS-9700 Users Manual 6.11

Download (5.27MB)

Warranty & Support Services

Each SMSEagle device comes with a warranty & support service that guarantees our users quality services and peace of mind. SMSEagle clients have the flexibility to choose from various levels of service depending on their needs and usage scenario.

Standard Warranty & Support

Included in the device price, Standard Warranty & Support service offers 2-Year hardware warranty coverage, access to support resources and software updates during the service period. Get immediate help whenever you need it.

With the SMSEagle standard 2-year warranty & support, you can trust in the reliability and durability of the SMSEagle device. We stand behind our products, we are also committed to providing you with the highest level of customer support. The Standard Warranty & Support grants you access to hardware warranty, support services, and software upgrades for your device. It allows you to stay up-to-date with new features and security releases, and get immediate help whenever you need it.

Extended Warranty & Support

The service offers additional period of coverage with total 3- or 5-Years of hardware warranty, technical support and access to software updates within the service period. Available for purchase only when buying the device.

Invest in the Extended Warranty to safeguard your smooth operation, maximize your device’s lifespan, and experience the unwavering support. With this extended warranty, you gain access to exceptional support services and software upgrades for 3 to 5 years, ensuring that your device remains optimized, secure, and equipped with the latest features.

Extended Warranty PLUS

This warranty plan is ideal for any customer who wants to minimize the time their system is not operational. The service offers 5-Year Warranty & Support plus advanced replacement service of faulty hardware within 48 business hours.

Extended Warranty Plus Service Coverage:

If the SMSEagle device fails during the Extended Warranty Plus service period, a replacement unit that is identical or equivalent will be shipped to the customer.

We cover the cost of shipping both ways during the 2-way delivery process.

The service is currently offered in the EU countries and globally.

2x faster support response times (SLA) for immediate resolution of incidents.

Benefits of the Extended Warranty Plus Service include:

A hassle-free replacement process of faulty unit with minimum questions asked

Fast and free shipping, with prepaid 2-way shipping

Rapid processing, as the replacement unit will be shipped within 48 business hours

Free remote troubleshooting assistance

Premium SLA levels

Post Warranty Care Packs (1,2,3-Year)

The service provides access to support services as well as software upgrades for your device after warranty period. It allows you to stay up-to-date with new features and security releases, and get immediate help whenever you need it.

Gain access to our expert technical support team, ready to assist you whenever you need immediate help or guidance. Whether you require troubleshooting assistance or expert advice, our team is dedicated to ensuring that your SMSEagle device runs smoothly, allowing you to maintain uninterrupted business operations. Additionally, receive regular software upgrades that keep your device at the forefront of technological advancements, maximizing its performance and enhancing its security.
